RoboFlow4D: A Lightweight Flow World Model

01 Planning in 3D Space

02 Pipeline

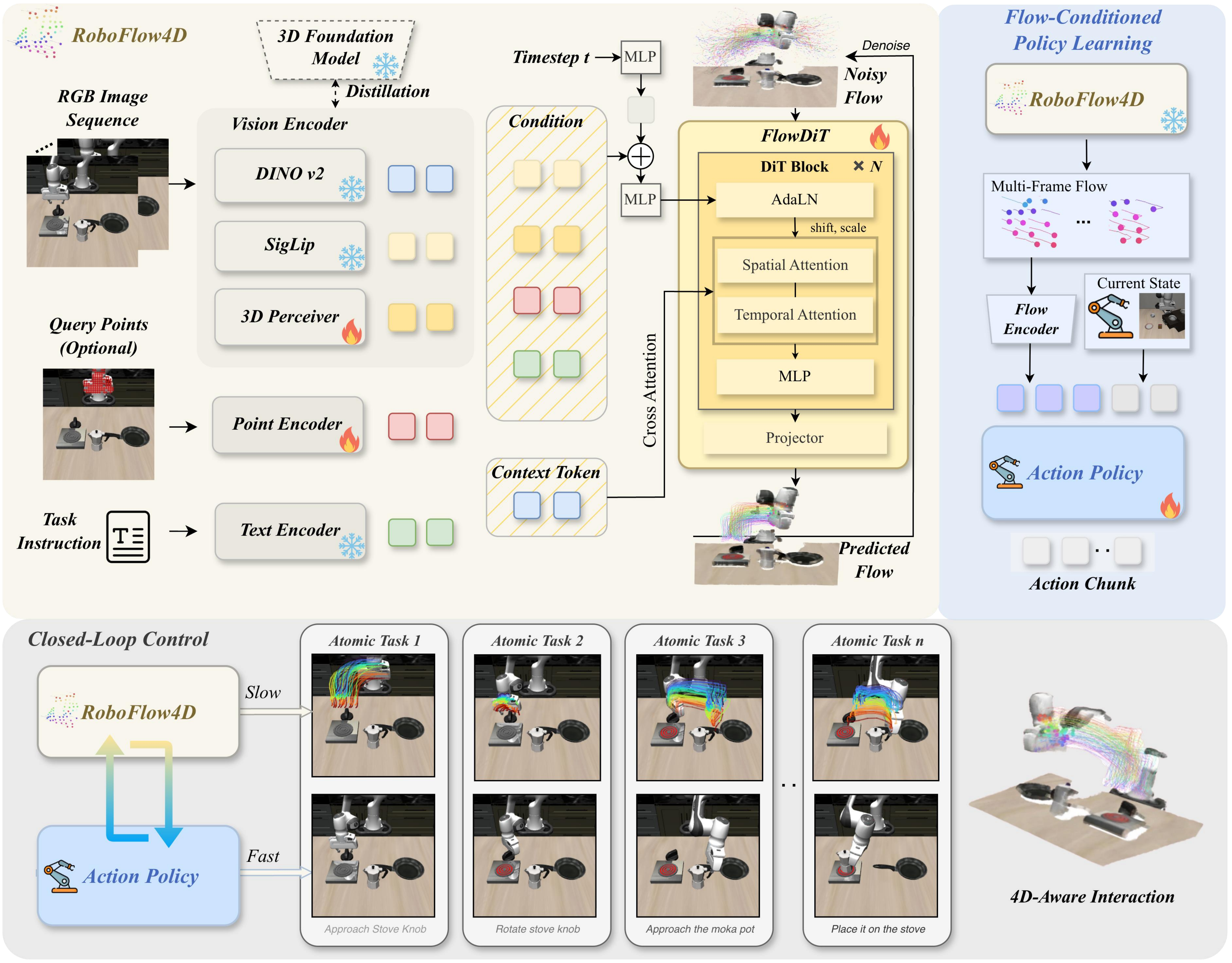

Top left. RoboFlow4D encodes the RGB sequence, optional query points, and task instruction into visual, point, and text tokens, then FlowDiT predicts future multi-frame 3D flows. Top right. A policy learns actions conditioned on the current state and explicit flow. Bottom. The observation-planning-execution loop uses RoboFlow4D as a slow planner and the action policy as a fast executor.

03 Abstract

Planning and acting in 3D environments is a fundamental capability for robotic manipulation in the real world. Existing predictive flow planners often rely on modular pipelines that stack multiple submodels, which increases computational overhead and limits real-time deployment.

RoboFlow4D addresses this limitation with a lightweight flow world model that directly predicts multi-frame 3D flows from visual observations and textual instructions. The predicted flows guide action generation in an observation-planning-execution closed loop, improving manipulation success rates while remaining efficient enough for real-time robotic control.

+6.2% / +11.0%

Average success-rate gains on LIBERO and ManiSkill3 over the base policy.

120x Faster Planning

RoboFlow4D achieves a large speedup over modular flow-planning pipelines.

< 1 Second Latency

Goal-oriented planning remains lightweight enough for real-time deployment.

04 Simulation Videos

Pick up the cream cheese and place it in the basket

Pick up the milk and place it in the basket

Pick up the black bowl on the wooden cabinet and place it on the plate

Pick up the black bowl on the ramekin and place it on the plate

Open the top drawer and put the bowl inside

Put the cream cheese in the bowl

Put both moka pots on the stove

Put the white mug on the left plate and the yellow-white mug on the right plate

05 Real-World Videos

Pick up the brown cup and insert it into the black cup

Real Robot

Flow Visualization Stage 1

Pick up the cup and place it in the white box

Real Robot

Flow Visualization Stage 1

Open the top drawer, place the red cube inside, and close it

Real Robot

Flow Visualization Stage 1

Pick up the red cube and place it on the blue cube

Real Robot

Flow Visualization Stage 1

06 Quantitative Results

LIBERO Benchmark

Success rates (%) on fine-tuned robotic manipulation tasks.

Method	Spatial	Object	Goal	Long	Average
Octo	78.9	85.7	84.6	51.1	75.1
CogACT	87.5	90.2	78.4	53.2	77.3
OpenVLA	84.7	88.4	79.2	53.7	76.5
TraceVLA	84.6	85.2	75.1	54.1	74.8
SpatialVLA	88.2	89.9	78.6	55.5	78.1
4D-VLA	88.9	95.2	90.9	79.1	88.6
DP	81.6	91.5	78.4	64.0	78.9
w/ RoboFlow4D	89.8	93.2	85.2	72.0	85.1
Δ	+8.2	+1.7	+6.8	+8.0	+6.2
DiT	84.2	96.3	85.4	68.8	83.7
w/ RoboFlow4D	90.2	97.0	88.4	75.2	87.7
Δ	+6.0	+0.7	+3.0	+6.4	+4.0

Real-World Results

Success rate (%) and completion time (seconds), averaged over about 20 trials.

Method	Pick-and-Place		Stack		Assemble		Drawer		Avg.
Method	Succ. ↑	Time ↓	Succ. ↑	Time ↓	Succ. ↑	Time ↓	Succ. ↑	Time ↓	Succ. ↑	Time ↓
π₀-Fast	70.0	55.9	20.0	41.6	30.0	56.3	10.0	88.2	32.5	60.5
π₀	80.0	37.6	30.0	28.0	40.0	35.3	15.0	62.0	41.3	40.7
DP	60.0	31.0	20.0	26.4	25.0	34.2	5.0	61.2	27.5	38.2
w/ RoboFlow4D	80.0	30.0	25.0	26.2	40.0	31.0	15.0	60.0	40.0	36.8
Δ	+20.0	-1.0	+5.0	-0.2	+15.0	-3.2	+10.0	-1.2	+12.5	-1.4
DiT	70.0	32.5	20.0	28.1	30.0	35.1	10.0	62.2	32.5	39.5
w/ RoboFlow4D	90.0	31.0	25.0	26.8	40.0	33.2	20.0	62.0	43.8	38.3
Δ	+20.0	-1.5	+5.0	-1.3	+10.0	-1.9	+10.0	-0.2	+11.3	-1.2

07 BibTeX

@inproceedings{lin2026roboflow4d,
  title   = {RoboFlow4D: A Lightweight Flow World Model Toward Real-Time Flow-Guided Robotic Manipulation},
  author  = {Sixu Lin and Junliang Chen and Huaiyuan Xu and Zhuohao Li and Guangming Wang and Yixiong Jing and Sheng Xu and Runyi Zhao and Brian Sheil and Lap-Pui Chau and Guiliang Liu},
  booktitle = {International Conference on Machine Learning (ICML)},
  year    = {2026}
}
